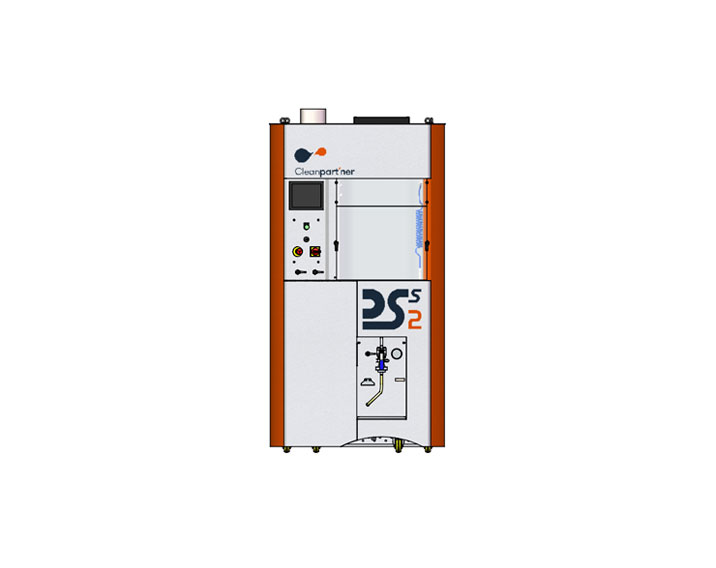

Decontamination extraction station
DSS2 series
DSS2 is the extraction station for Cleanpart’ner particle trackers for small and medium-sized components. It allows the extraction of contamination on very small components to assess their level of cleanliness in accordance with current standards such as ISO 16232 and VDA19, among others.
Benefits
· Ovoid extraction enclosure to minimize particle retention, super polished mirror finish, Ra 0.02
· Fast and repeatable blank acquisition, value less than 150 µm, 100 µm repeatable as a minimum
· Integrated in the bottom of the sink, adjustable power of 400 W (optional)
· Automatic Wall flushing integrated into walls without risk of particles retention
· Full access to the extraction area (optional sliding window)
· Double air supply flow and exhaus air extraction, integrated into the station (operator protection)
· Laminar air flow with HEPA filter 0,3 µm meet a class 5max. according to ISO 14644
· Touch colour machine interface with functional and intuitive controls
· Designed and manufactured in our workshops
· Quality of finishes and choice of materials to avoid particle generation and retention
· Proven and reliable equipment
Dimensions
| Width (mm) | Depth (mm) | Height (mm) |
Working area | 507 / 600 max. | 459 | 630+205 |
Overall | 1072 | 785 | 2100 |
