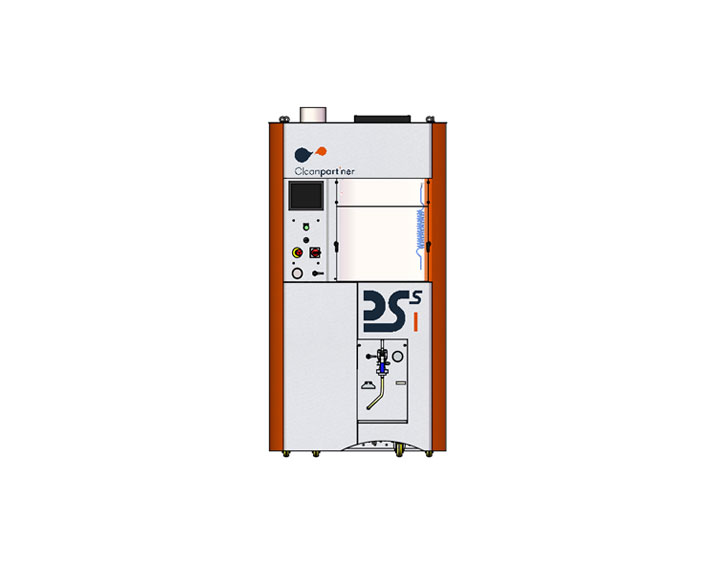

Decontamination extraction station
DSS1 series
The DSS1 is the smallest of the Cleanpart’ner particle tracker extraction stations. It allows the extraction of contamination on very small components to assess their level of cleanliness in accordance with current standards such as ISO 16232 and VDA19, among others.
Benefits
· Extraction bowl Ø 290 mm
·Quick installation, passing through a standard access door
· Fast and repeatable blank acquisition, value less than 50 µm
· Ultrasonics integrated to the bowl, adjustable 150w power(optional)
· Full access to the extraction area (optional sliding window)
· Double air supply flow and exhaust air extraction, integrated into the station(operator protection)
· Laminar air flow with HEPA filter 0,3µm meet a class 5 max. following ISO 14644
· Touch colour machine interface with functional and intuitive controls
· Designed and manufactured in our workshops
· Quality of finishes and choice of materials to avoid particle generation and retention
· Proven and reliable equipment
Dimensions
| Width (mm) | Depth (mm) | Height (mm) |
Working area | Bowl Ø 290 | / | 145 |
Overall | 1072 | 785 | 2100 |
