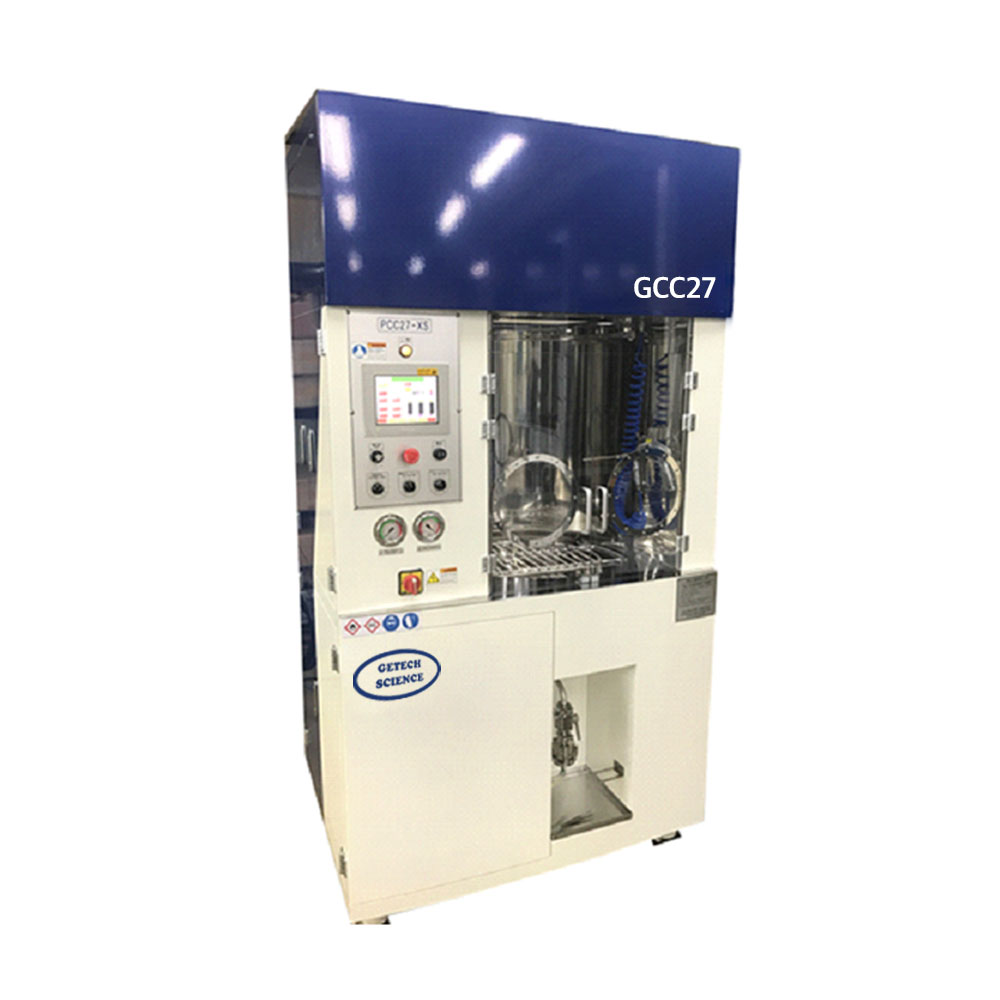

GETECH GCC27Cleanliness Cabinet
NEW: GCC27
Component Cleanliness Cabinet
For the determination of component cleanliness
The GETECH SIENCE GCC27 offer a variety of solutions for improving cleanliness quality. The GE TECH GCC27 Cleanliness Cabinet facilitates the accurate, reliable and repeatable preparation of gravimetric membranes for the determination of component cleanliness.
The PCC27 enables operators to access the cleanliness level of the manufactured parts and components in accordance to ISO18413, ISO16232 and VDA 19 procedures.
Features
• Stainless Steel and Carbon Steel Construction
• Reliable and repeatable measurements
• HEPA filtered laminar air flow in a self contained super polished stainless steel working area
• Simple to install and operate
• Fully portable requiring only a power source
• Designed and built to ISO Pressure Washing standard 16232
• Solvent dispensing gun with fluid volume dispensing counter
• Pressurized solvent dispensing and recycling circuits

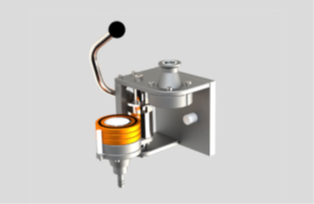

• Gravimetric membrane holder
• Auto Wall Wash function
• PLC controlled operating parameters (option)
General Specifications
• Dimensions: 1150mm W x 900mm D x 2190mm H
• Inputs: 220V/200V, 50 or 60 Hz, 1 or 3Phase

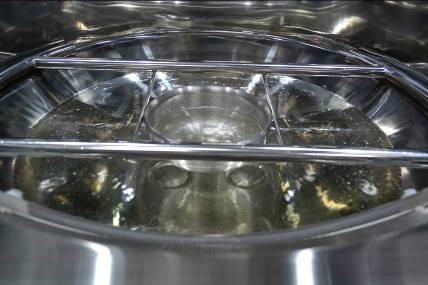

• Working area: 700mm W x 700mm Diameter X600(~750)mmH
• Fluorocarbon seals, BA grade SUS materials are standard
• Air flow ISO14644-123 Class 5
• Polished stainless steel extraction enclosure
• Controlled cleanliness environment
(Class 5 per ISO 14644-1)
• HEPA filter rating: 0.3 μm absolute
• Control panel with colored touch screen
• Solvent filter rating: 0.2 μm absolute
• Test membrane holder in the power zone
• Noise level in working conditions: < 72 dB
Materials of Construction:
Electrochemical Polished for both Stainless Steel Working Area and inside tube
Cabinet Option:
- Ultrasonic Operation in Bath
- 3Stage Cascade Membrane holder
