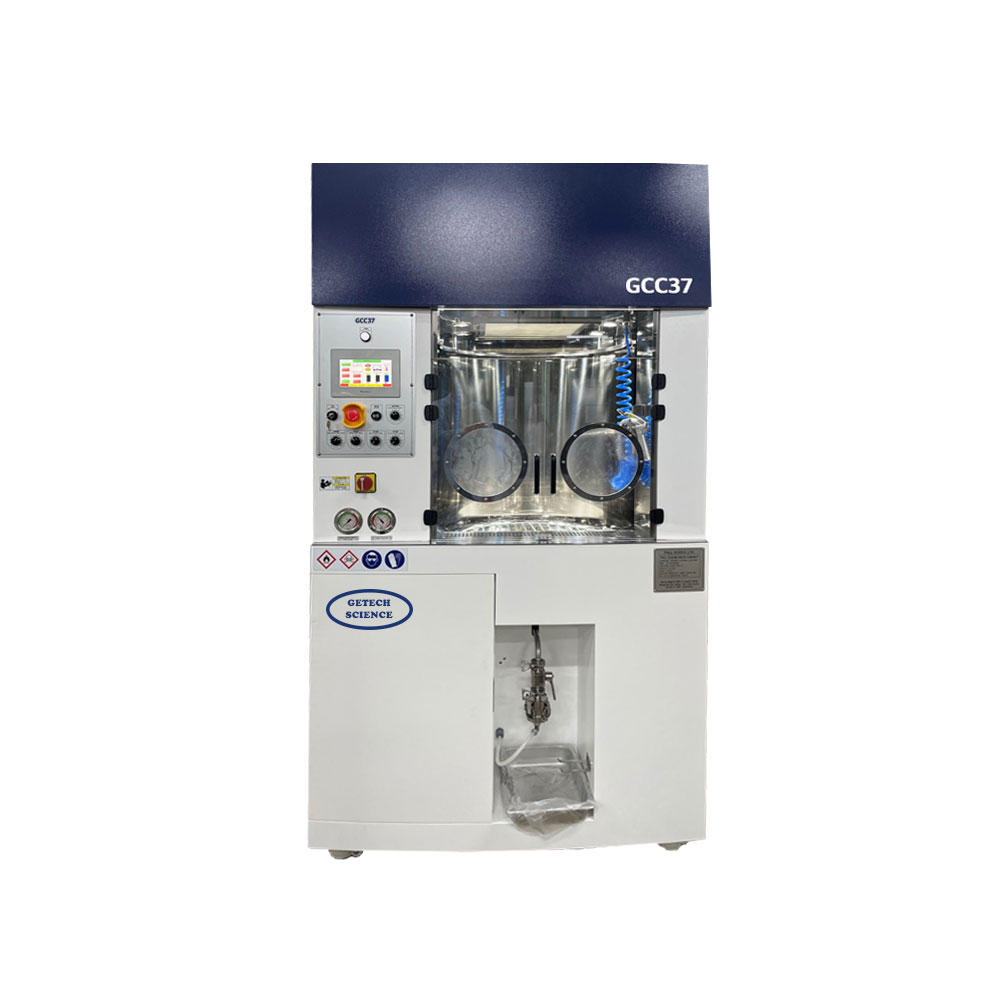

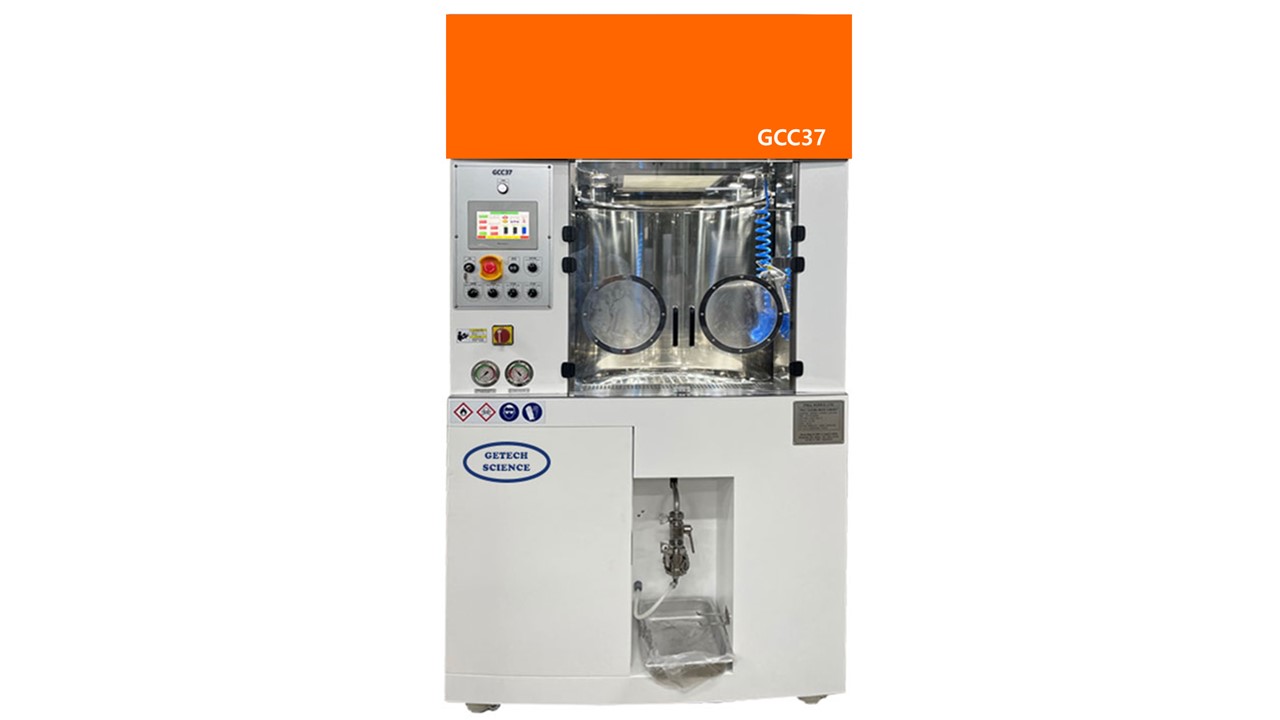

GCC37 Cleanliness Cabinet System
GETCH GCC37 Cleanliness Cabinet
For the determination of component cleanliness
The GETECH SIENCE GCC37 offer a variety of solutions for improving cleanliness quality. GSS37 facilitates the accurate, reliable and repeatable preparation of gravimetric membranes for the determination of component cleanliness.
The GETECH GCC37 enables operators to access the cleanliness level of the manufactured parts and components in accordance to ISO18413, ISO16232 and VDA 19 procedures.
Features
• Stainless Steel and Carbon Steel Construction
• Reliable and repeatable measurements
• HEPA filtered laminar air flow in a self contained super polished stainless steel working area
• Simple to install and operate
• Fully portable requiring only a power source
• Designed and built to ISO Pressure Washing standard 16232
• Solvent dispensing gun with fluid volume dispensing counter
• Pressurized solvent dispensing and recycling circuits
• Gravimetric membrane holder
• Auto Wall Wash function
• PLC controlled operating parameters (option)
General Specifications
• Dimensions: 1200mm W x 1000mm D x 2300mm H
• Inputs: 220V/200V 50 or 60 Hz
• Working area: 696mm W x 800mm Diameter X800mm H
• Fluorocarbon seals, BA grade SUS materials are standard
• Air flow ISO14644-123 Class 5
• Polished stainless steel extraction enclosure
• Controlled cleanliness environment
(Class 5 per ISO 14644-1)
• HEPA filter rating: 0.3 μm absolute
• Control panel with colored touch screen
• Solvent filter rating: 0.2 μm + 0.2 μm absolute
• Test membrane holder in the power zone
• Noise level in working conditions: < 74 dB
Materials of Construction:
Electrochemical Polished for both Stainless Steel Working Area and inside tube
Cabinet Option:
Ultrasonic Operation in Bath
