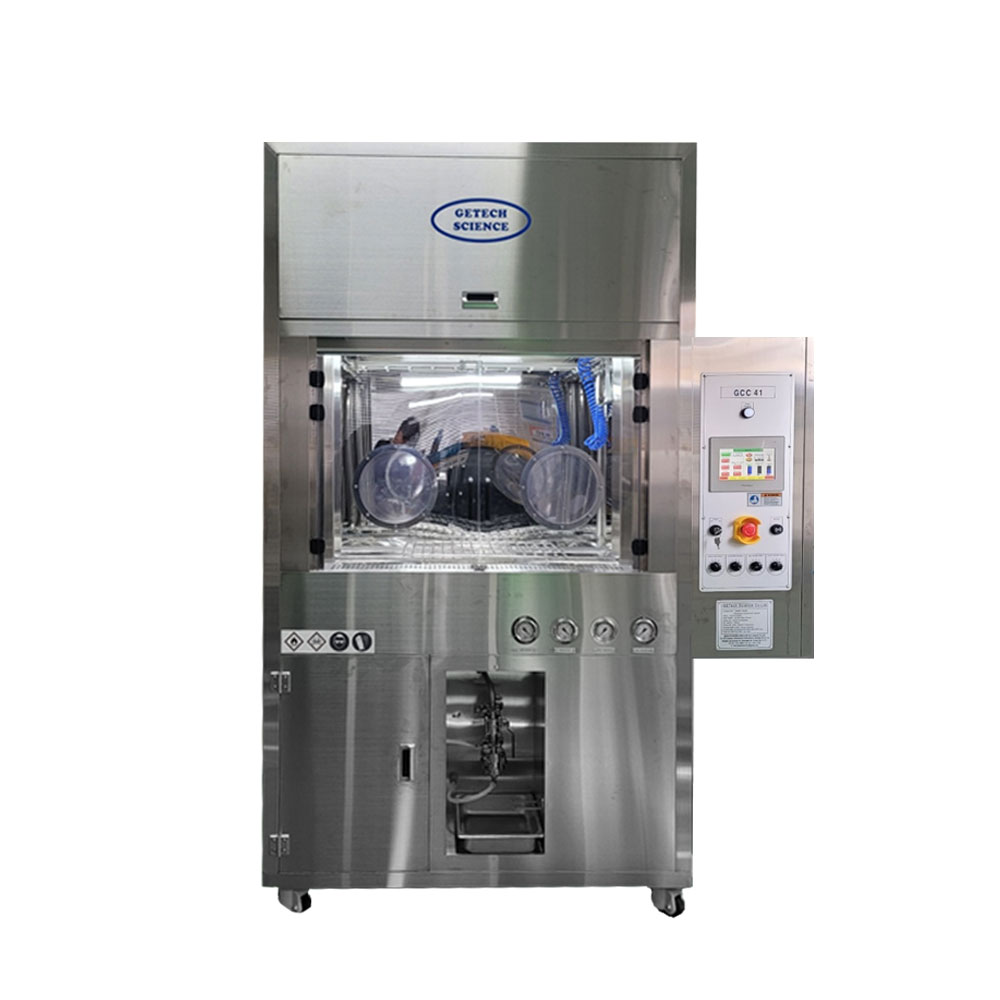

GCC41 GETECH SCIENCE Cleanliness System
NEW: GETECH GCC41
Component Cleanliness System
For the determination of component cleanliness
The GETECH SIENCE GCC41 offer a variety of solutions for improving cleanliness quality. GCC4 facilitates the accurate, reliable and repeatable preparation of gravimetric membranes for the determination of component cleanliness.
The GETECH GCC41 enables operators to access the cleanliness level of the manufactured parts and components in accordance to ISO18413, ISO16232 and VDA 19 procedures.
Features
• Large work area for large manufactured parts
• Reliable and repeatable measurements
• HEPA filtered laminar air flow in a self-contained super polished stainless steel working area
• Simple to install and operate
• Fully portable requiring only a power source
• Designed and built to ISO Pressure Washing standard 16232
• Solvent dispensing gun with fluid volume dispensing counter
• Pressurized solvent dispensing and recycling circuits
• Gravimetric (Microscopic) membrane holder
• Auto Wall Wash function
• PLC controlled operating parameters (option)
General Specifications
• Dimensions: 1646mm W x 950mm D x 2340mm H
• Inputs: 220V 50 or 60 Hz
• Working area: 1060mm W x 700mm D X650(770)mm H
• Fluorocarbon seals, BA grade SUS materials are standard
• Polished stainless steel extraction enclosure
• Controlled cleanliness environment
(Class 5 per ISO 14644-1)
• HEPA filter rating: 0.3 μm absolute
• Pro-Face / Siemens Touch Screen
• Fluid filter rating: 0.2 μm +0.2 μm absolute
• Test membrane holder in the power zone
• Noise level in working conditions: < 80 dB
Materials of Construction:
Electrochemical Polished for both Stainless Steel Working Area and inside tube
Membrane Holder: 47mm Diameter - 2stages.
3 stages Cascade (option)
Chemical Compatibility: Synthetic Hydrocarbon Washing Fluids or D.I. Water
Vacuum Pump: -0.7 Bar vacuum pressure limit
Ultrasonic bath (option): 36~40 kHz, 196~ 200W max.
Effective efficiency(option): 20 W/L
