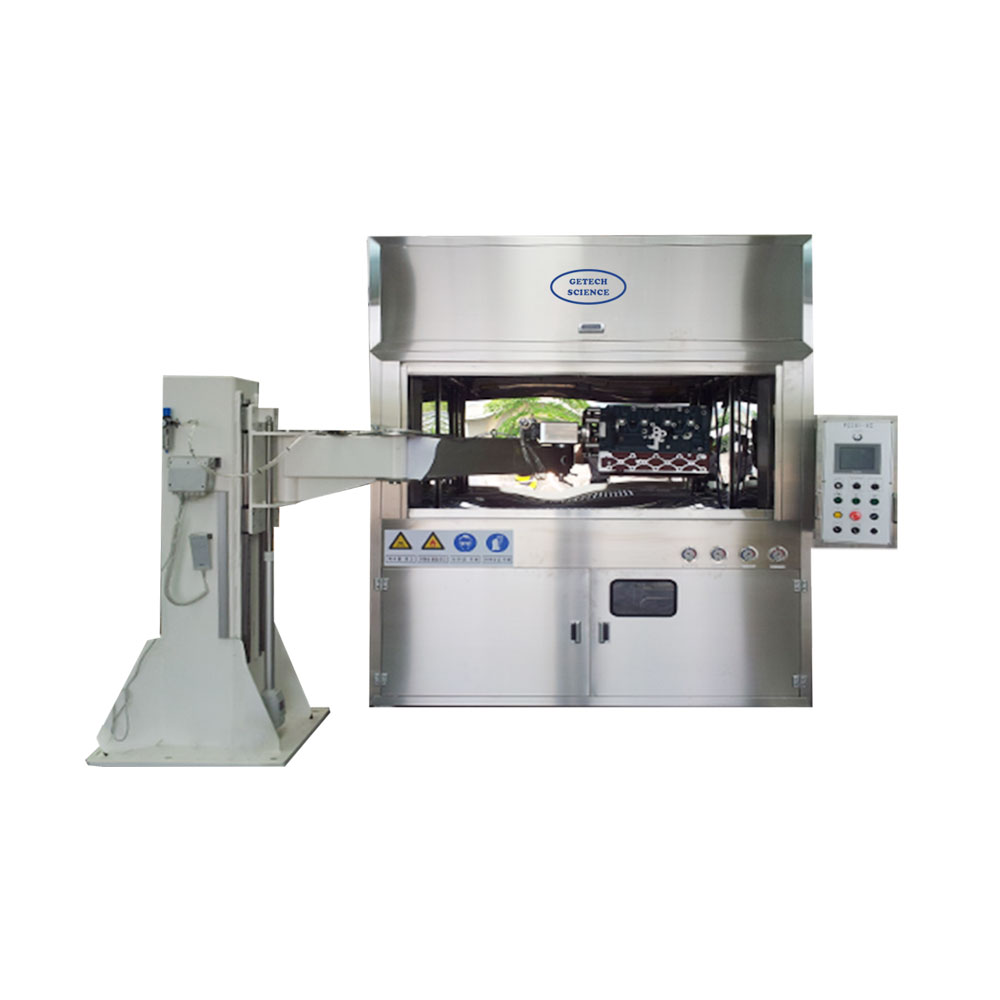

GCC71 GETECH Cleanliness Cabinet
NEW: GETECH GCC71
Component Cleanliness Cabinet
For the determination of component cleanliness
The GETECH SIENCE GCC71 offer a variety of solutions for improving cleanliness quality. The GCC71 Cleanliness Cabinet facilitates the accurate, reliable and repeatable preparation of gravimetric membranes for the determination of component cleanliness.
The GCC71 enables operators to access the cleanliness level of the manufactured parts and components in accordance to ISO18413, ISO16232 and VDA 19 procedures.
Features
• Large work area for large manufactured parts
• Reliable and repeatable measurements
• HEPA filtered laminar air flow in a super polished stainless steel working area
• Simple to install and operate
• Fully portable requiring only a power source
• Designed and built to ISO Pressure Washing standard 16232
• Solvent dispensing gun with fluid volume dispensing counter
• Pressurized solvent dispensing and recycling circuits
• Gravimetric membrane holder
• Auto Wall Wash function
• PLC controlled operating parameters (option)
General Specifications
• Dimensions: 2100mm W x 1350mm D x 2370mm H
• Inputs: 200/220 Volt, 50 or 60Hz, 1 or 3 phase
• Working area: 1660mm W x 1040mm D X750mm H
• Fluorocarbon seals, BA grade SUS304 materials
are standard
• Air flow ISO14644-123 Class 5
• Polished stainless steel extraction enclosure
• Controlled cleanliness environment
(Class 5 per ISO 14644-1)
• HEPA filter rating: 0.3m absolute
• Control panel with colored touch screen
• Maximum flash point of wash fluid >54°C
• Test membrane holder in the power zone
• Noise level in working conditions: < 72dB
Cabinet Option:
Lifter Arm
